| FERRITE WAVEGUIDE ISOLATORS and CIRCULATORS → HIGH POWER ISOLATORS and CIRCULATORS |
| |
| Click here to see characteristics of the models |
| |
| Types isolators and circulators |
| |
X |
X |
X |
X |
XX |
- |
X |
|
|
(1) |
(2) |
(3) |
(4) |
(5) |
|
(6) |
|
|
|
| |
|
|
(1) |
Frequency range: |
1 - 10 to 99 MHz, 2 - 100 - 999 MHz,
3 - 1- 9 GHz, 4 - 10 - 99 GHz. |
(2) |
Code of the type: |
I - Isolator, C - Circulator. |
(3) |
General code: |
W - Waveguide |
(4) |
Code of application: |
H- High Power Isolators and Circulators |
(5) |
Central frequency for frequency range: |
1 - (10 - 99 (MHz)),
2 - (100 - 999 (MHz)),
3 - (1- 9 (GHz)),
4 - (10 - 99 (GHz)). |
(6) |
Modification |
|
|
|
|
|
|
|
|
| |
| |
Model name |
Frequency
range (GHz) |
Bandwidth
%, min |
Insertion
loss
dB, max |
Isolation
dB, min |
VSWR
max |
Power
peak
kW |
Average
power
kW |
Terminal
power, W(max) |
3CWH24-1 |
2.40÷2.50 |
Full |
0.3 |
20 |
1.15 |
10 |
1.5 |
- |
3CWH25-1 |
2.40÷2.60 |
Full |
0.3 |
20 |
1.25 |
10 |
1.5 |
- |
3CWH29-1 |
2.85÷3.05 |
Full |
0.3 |
20 |
1.25 |
10 |
1.5 |
- |
3CWH30-2 |
2.40÷2.50 |
Full |
0.15 |
23 |
1.15 |
1 |
1 |
- |
3CWM78-1 |
7.30÷7.70 |
Full |
0.2 |
23 |
1.15 |
0.5 |
0.5 |
- |
4IWM11-2 |
10.00÷13.00 |
Full |
0.4 |
20 |
1.25 |
- |
0.1 |
0.1 |
4CWM30-3 |
29.75÷30.25 |
Full |
0.3 |
23 |
1.20 |
0.5 |
0.25 |
- |
4IWH34-4 |
25.92÷37.5 |
2 |
0.4 |
20 |
1.20 |
6 |
0.6 |
60 |
4IWH34-8 |
25.92÷37.5 |
5 |
0.2 |
20 |
1.20 |
0.6 |
0.05 |
20 |
|
| |
| |
| |
|
| |
NOTES:
1. Max and Min values within temperature ranges (-30 to +70) °C.
2. Devices are in need of cooling.
3. For Isolators, replace "C" with "I" in the model number.
4. Yellow color - new devices. |
| |
|
|
|
| |
| |

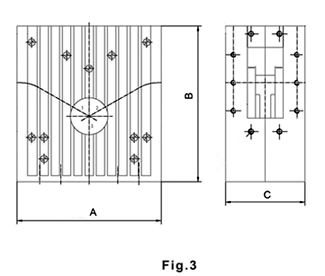

| Outlines (all dimensions are in millimeters) |
| |
 |
 |
 |
|
| |
| |
Model |
A |
B |
C |
Flange |
Drawing |
Fig. |
3D |
3CWH24-1 |
173 |
189.8 |
95.2 |
WR-340 |
|
3 |
|
3CWH25-1 |
173 |
189.8 |
95.2 |
WR-340 |
|
3 |
|
3CWH29-1 |
173 |
189.8 |
95.2 |
WR-340 |
|
3 |
|
3CWH30-2 |
173 |
189.8 |
95.2 |
WR-340 |
|
3 |
|
3CWM78-1 |
68 |
65.2 |
47.9 |
WR-112 |
|
3 |
|
4IWM11-2 |
45 |
230 |
45 |
WR-75 |
|
3 |
|
4CWM30-3 |
46 |
59 |
36 |
WR-28 |
|
3 |
|
4IWH34-4 |
108 |
64 |
37 |
WR-28 |
|
1 |
|
4IWH34-8 |
22 |
38 |
24 |
WR-28 |
|
2 |
|
|
| |
| |
| |
| |
| |
| |
| |
| Registration of the order and technical consultation: info@ferrite-quasar.ru |
| |
| |
