| Types isolators and circulators |
| |
X |
X |
X |
X |
XX |
- |
X |
|
|
(1) |
(2) |
(3) |
(4) |
(5) |
|
(6) |
|
|
|
| |
|
|
(1) |
Frequency range: |
1 - 10 to 99 MHz, 2 - 100 - 999 MHz,
3 - 1- 9 GHz, 4 - 10 - 99 GHz. |
(2) |
Code of the type: |
G - Isohybride. |
(3) |
General code: |
D - Drop-in. |
(4) |
Code of application: |
S - Standard, |
(5) |
Central frequency for frequency range: |
1 - (10 - 99 (MHz)),
2 - (100 - 999 (MHz)),
3 - (1- 9 (GHz)),
4 - (10 - 99 (GHz)). |
(6) |
Modification |
|
|
|
|
|
|
|
|
| |
| This devices have integrated the functions of isolator and combiner into a single Isohybrid. This provides two Isolators and a 90 degree hybrid a single unit. |
| |
Model name |
Frequency
range (MHz) |
Band
width
%, min |
Insertion
loss
dB, max |
Isolation
dB, min |
Temperature
range
°C |
Power
W |
2ISG91-1 |
890÷935 |
4 |
3.6 |
45 |
-30 to +70 |
60 |
3ICG15-1 |
1200÷1700 |
4 |
|
|
+10 to +50 |
60 |
3ISG18-1 |
1815÷1868 |
4 |
3.4 |
45 |
-30 to +70 |
60 |
|
|
|
|
|
|
|
|
| |
| |
|
| |
| |

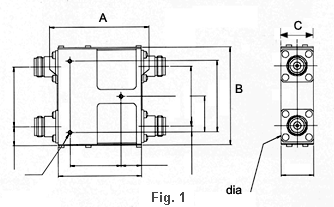

| Outlines - all dimensions are in millimeters. |
| |
 |
|
|
|
| |
| |
Model |
A |
B |
C |
D |
D1 |
D2 |
E |
F |
G |
H |
t |
Fig. |
2ISG91-1 |
66.0 |
77.0 |
25.4 |
|
|
|
|
|
|
|
|
1 |
3ICG15-1 |
93.0 |
139.0 |
21.5 |
|
|
|
|
|
|
|
|
1 |
3ISG18-1 |
77.0 |
66.0 |
25.4 |
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
| Registration of the order and technical consultation: info@ferrite-quasar.ru |
| |
| |
