| MICROSTRIP ISOLATORS and CIRCULATORS → BROADBAND (Octave Plus) ISOLATORS and CIRCULATORS |
| |
| Click here to see characteristics of the models |
|
| |
| Types isolators and circulators |
| |
X |
X |
X |
X |
X |
XX |
X |
- |
X |
X |
|
(1) |
(2) |
(3) |
(4) |
(5) |
(6) |
(7) |
|
(8) |
(9) |
|
|
| |
|
|
(1) |
Frequency range: |
2 - 100 - 999 (MHz), 3 - 1- 9 (GHz), 4 - 10 - 99 (GHz). |
(2) |
Code of the type: |
I - Isolator, C - Circulator. |
(3) |
General code: |
M - microstrip |
(4) |
Code: |
B - for metal backed substrate type (isolator/circulator) |
(5) |
Code: |
S - carrier type, M - substrate type (isolator/circulator). |
(6) |
Central frequency for frequency range: |
2 - (100 - 999 (MHz)), 3 - (1- 9 (GHz)),
4 - (10 - 99 (GHz)). |
(7) |
Direction of rotation: |
L - counterclockwise, - clockwise (by silence). |
(8) |
Model number: |
(1, 2 and 3 - for example). |
(9) |
Code: |
P - high-power isolator/circulator, N - should be installed on the nonmagnetic base (for substrate type isolators and circulators),
G - general (for wideband type isolators and circulators) |
|
|
|
|
|
|
|
| |
|
|
|
Model name |
Operating
frequency
range (GHz) |
Isolation
(dB)
min |
Insertion
loss (dB)
max |
VSWR
(50 Ω max) |
Operation power,
W(max) |
Temperature
range
°C |
Dimensions,
AxBxC
(mm) |
4IMBS12-1WG |
6.0÷18.0 |
12 |
1.4 |
1.7 |
5 |
-30 to +70 |
12x10.5x6 |
4CMBS12-1WG |
6.0÷18.0 |
12 |
1.4 |
1.7 |
5 |
-30 to +70 |
12x10.5x6 |
4IMBS13-1WG |
8.0÷18.0 |
16 |
1.0 |
1.4 |
5 |
-30 to +70 |
12x12x5.5 |
4CMBS13-1WG |
8.0÷18.0 |
16 |
1.0 |
1.4 |
5 |
-30 to +70 |
12x12x5.5 |
|
|
|
| |
|
|
|
|
|
|
|

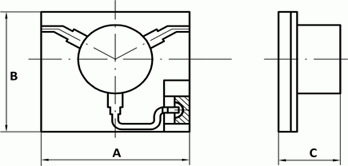

| Outlines (all dimensions are in millimeters) |
| |
 |
| |
| |
| |
| Registration of the order and technical consultation: info@ferrite-quasar.ru |
